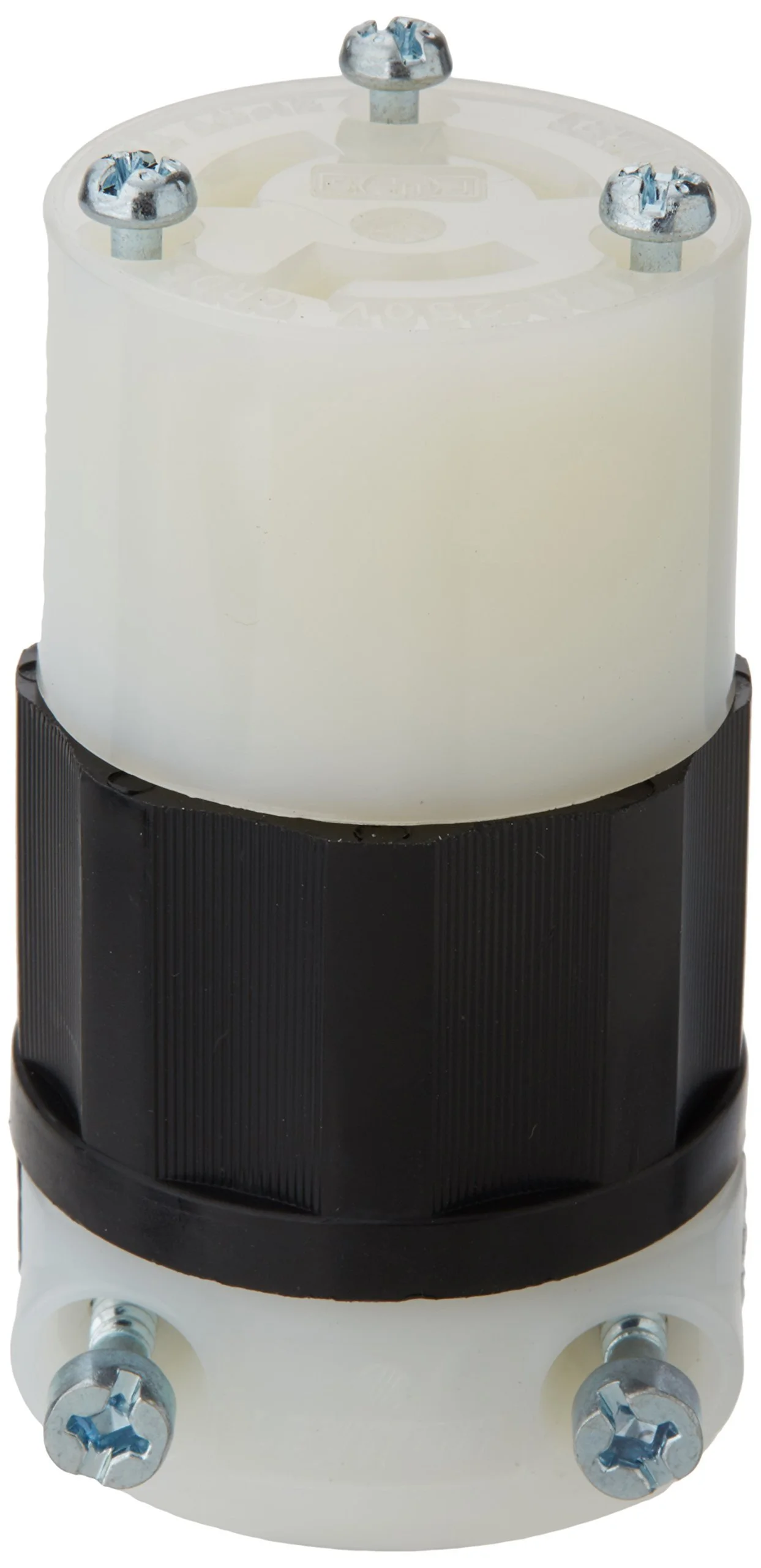

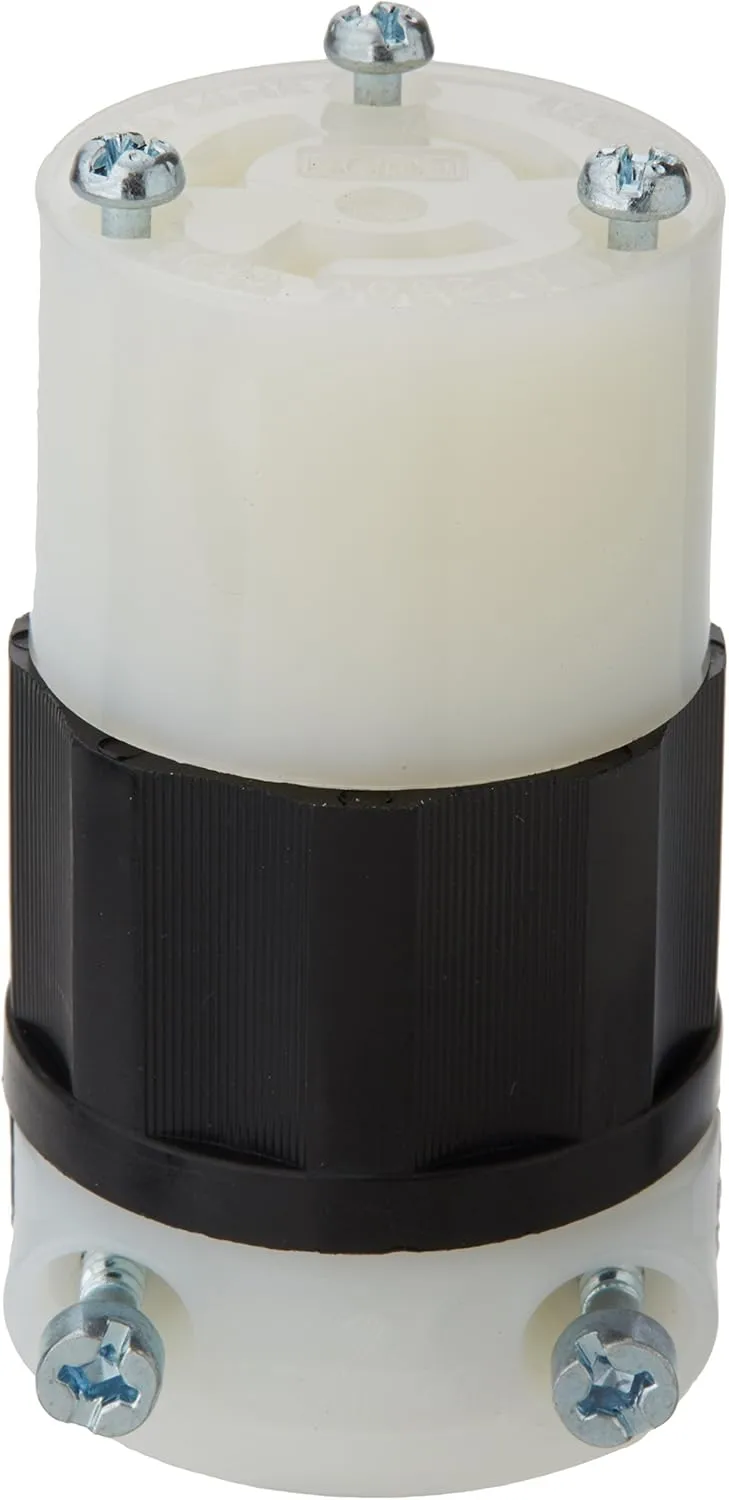

Leviton 15 Amp, 250 Volt, NEMA L6-15R, 2P, 3W, Locking Connector, Industrial Grade, Grounding, 4579-C, Black-White
Leviton 15A 250V NEMA L6-15R locking connector — industrial-grade nylon body, self-grounding, 2-pole 3-wire, black & white. UL/CSA listed for reliable power connections.
$43.98
Customize
Available Quantity
17 GSA Item
No GSA Compliant
No Product Details
Leviton 4579-C locking connector is an industrial-grade NEMA L6-15R plug-style connector rated 15 Amps and 250 Volts, designed for secure, reliable power connections in demanding environments. The super-tough nylon body resists impact, abrasion and chemicals while solid brass blades and contacts deliver improved conductivity, low resistance and long life. This self-grounding, 2-pole, 3-wire connector supports 1-phase operation and fits cord diameters from 0.2450" to 0.7000". It meets UL and CSA requirements and is built to industrial standards (ANSI C-73; CSA C22.2 No. 42; NEMA WD-6; NOM 057). Includes manufacturer part 4579-C and is backed by Leviton quality and warranty terms.
- UL and CSA listed
- Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire. Total Outlet: 1
- Solid brass blades and contacts feature improved conductivity, low resistance, low heat, and long life
- NEMA and Non-NEMA configurations available
- Super tough nylon body resists damage from severe impact, abrasion and chemicals
Specifications:
| Materials & Construction | |
| Color | Black, White |
| Material | Nylon |
| Product Details | |
| Amperage | 15 Amps |
| Connector Type | Plug in |
| Country of Origin | USA |
| Grade | Industrial |
| Grounding Style | Self-Grounding |
| Included Components | 4579-C |
| Material | Nylon |
| Maximum Cord Diameter (Decimal Inch) | 0.7000 |
| Minimum Cord Diameter (Decimal Inch) | 0.2450 |
| Nema Configuration | L6-15r |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Plug Format | NEMA L6-15R |
| Product Grade | New |
| Specification Met | NEMA |
| Standards | Ansi C-73; Csa C22.2 No. 42 File Lr-406; Csa Certified; Nema Wd-6; Nom 057; Ul 498 File E13393; Ul Federal Specification W-C-596 File E13393; Ul Listed |
| UPC | 078477795712 |
| Voltage | 250 Volts (AC) |
| Sizing & Dimensions | |
| Height | 6 inches |
| Length | 9 inches |
| Product Dimensions | 9 x 7 x 6 inches |
| Weight | 2.39 ounces |
| Width | 7 inches |
| Technical Specifications | |
| Warranty | Manufacture |
