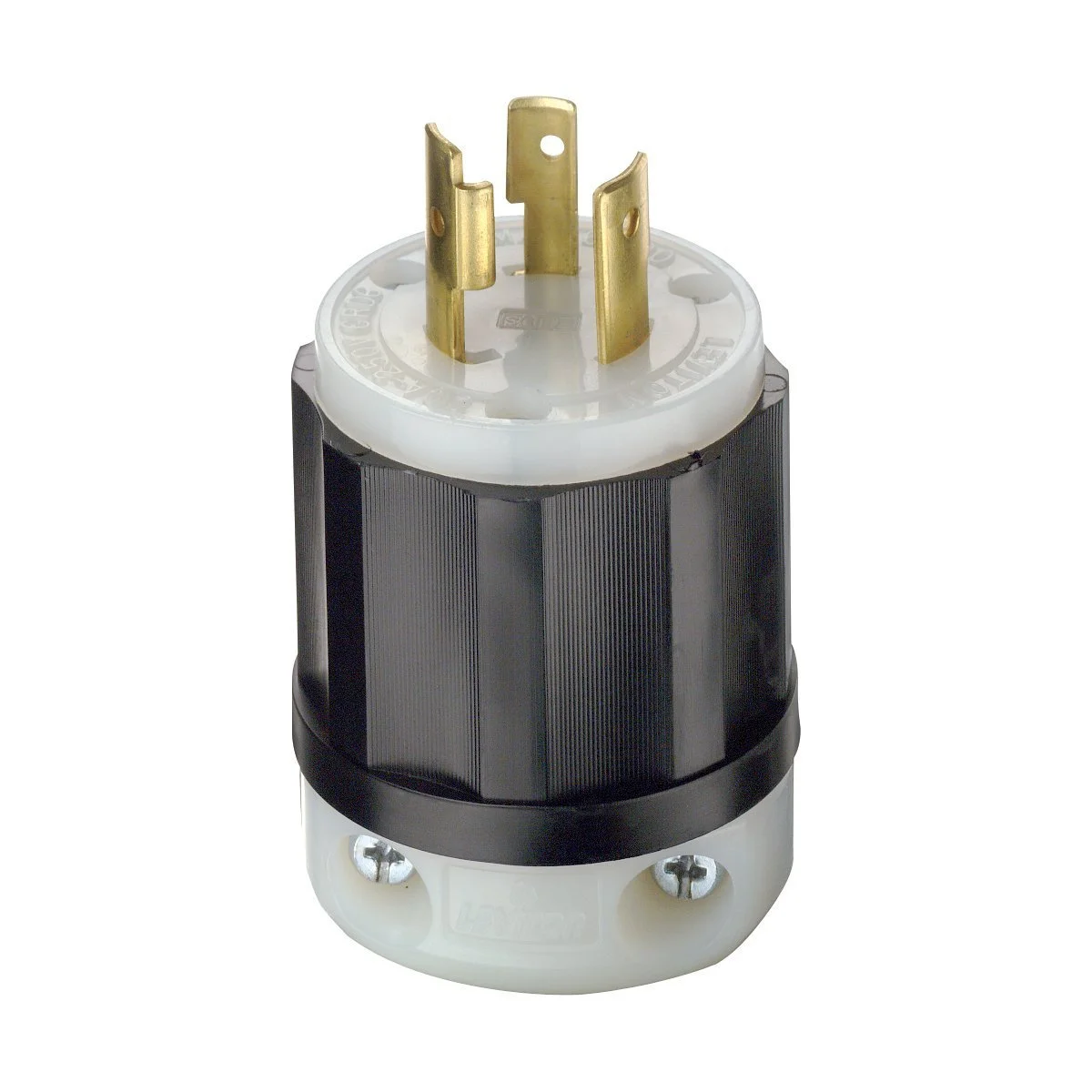

Leviton 2321 20 Amp, 250 Volt, NEMA L6-20P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - Black-White One Size
Customize
Locking Inlet: Plug, Industrial, L6-20P, 250V, Black & White Self-Grounding, 20A, Nylon, 2 Poles, 3 Wire, Connector Type: Plug , Grade: Industrial , Material: Nylon , Grounding Style: Self-Grounding , Amperage: 20 , Voltage: 250V , Number Of Poles: 2 , Number Of Wires: 3 , Color: Black; White , Resistance Features: Chemical Resistant; Impact-Resistant , Minimum Cord Diameter (Decimal Inch): 0.3850 , Maximum Cord Diameter (Decimal Inch): 0.7800 , Number Of Phases: 1 , Standards: ANSI C-73; CSA C22.2 No. 42 File LR-406; CSA Certified; NEMA WD-6; NOM 057; UL 498 File E13393; UL Federal Specification W-C-596 File E13393; UL Listed , Nema Configuration: L6-20P . PRODUCT DESCRIPTION POLARIZED TYPE; SUPER TOUGH NYLON (BODY), SOLID BRASS (BLADE/CONTACT) MATERIAL; BLACK, WHITE COLOR; L6-20P CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2, NOM 057 APPROVAL; 250 V VOLTAGE RATING; 20 AMPERE CURRENT RATING; GROUNDING; 2 POLE(S) FROM THE MANUFACTURER Leviton's industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty. 20 Amp, 250 Volt, NEMA L6-20P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - Black-White
- Made proudly in North America
- Industry exclusive limited lifetime warranty
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Unique cord clamp accepts wide range of cord sizes (.245"-.700")
- One piece contacts reduce friction and overheating
Specifications:
| Materials & Construction | |
| Color | Black, White |
| Material | Nylon |
| Outer Material | Nylon |
| Product Details | |
| Amperage | 20 |
| Connector Type | Plug |
| Grade | Industrial |
| Grounding Style | Self-Grounding |
| Material | Nylon |
| Maximum Cord Diameter (Decimal Inch) | 0.7800 |
| Minimum Cord Diameter (Decimal Inch) | 0.3850 |
| Nema Configuration | L6-20p |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Resistance Features | Chemical Resistant; Impact-Resistant |
| Standards | Ansi C-73; Csa C22.2 No. 42 File Lr-406; Csa Certified; Nema Wd-6; Nom 057; Ul 498 File E13393; Ul Federal Specification W-C-596 File E13393; Ul Listed |
| Voltage | 250 Volts |
| Sizing & Dimensions | |
| Height | 4.94 inches |
| Length | 11.81 inches |
| Product Dimensions | 11.81 x 4.63 x 4.94 inches |
| Weight | 3.53 ounces |
| Width | 4.63 inches |
| Technical Specifications | |
| Warranty | Industry exclusive limited lifetime warranty |
