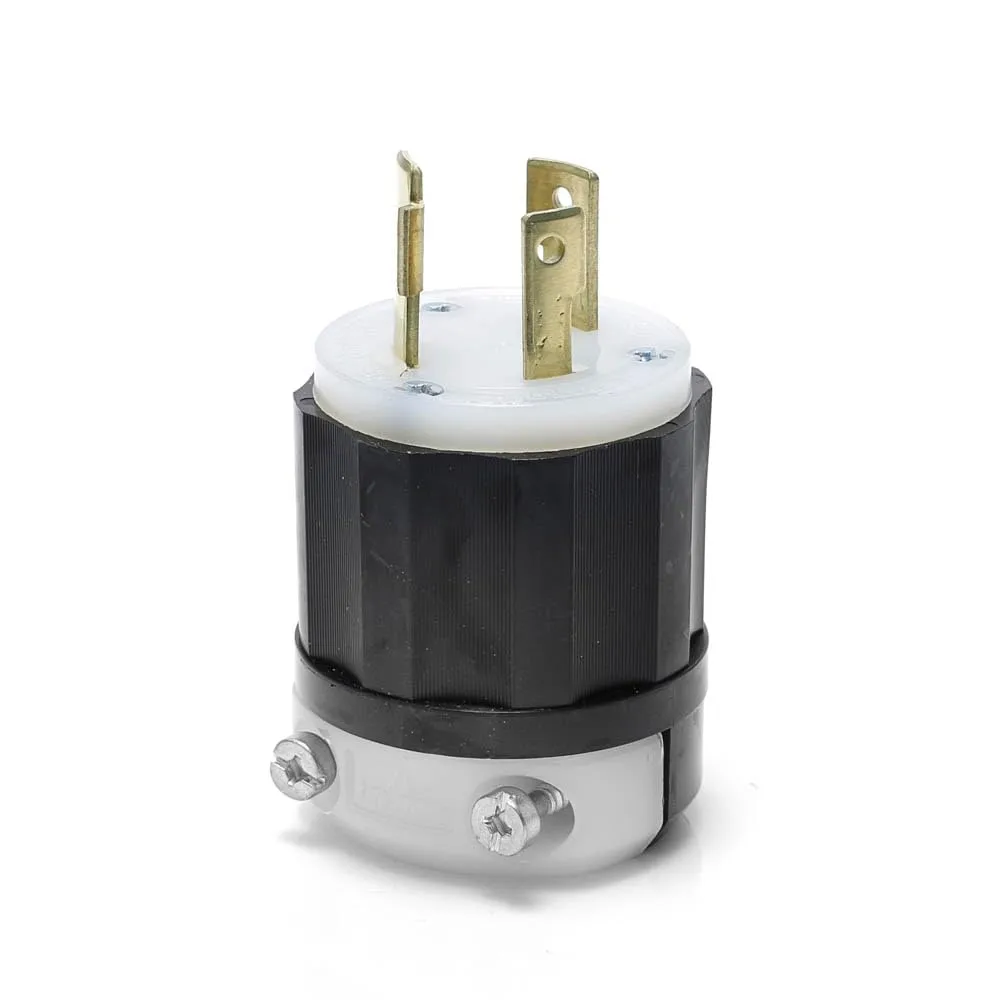

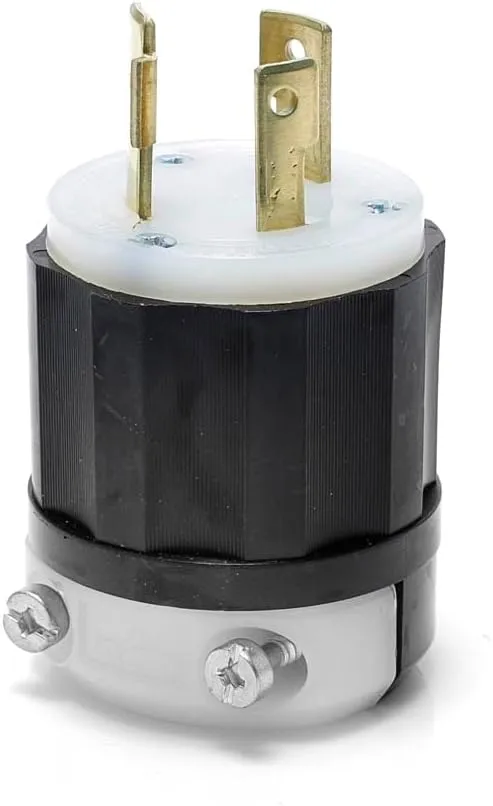

Leviton 30 Amp, 480 Volt, NEMA L8-30P, 2P, 3W, Locking Plug, Industrial Grade, Grounding, 2641, Black-White
Leviton 2641 NEMA L8-30P locking plug — industrial-grade nylon locking inlet, 30A/480V, 2-pole 3-wire grounding connector in black and white; durable, UL/CSA listed for industrial use.
$87.92
Customize
Available Quantity
2 GSA Item
No GSA Compliant
No Product Details
PRODUCT DESCRIPTION POLARIZED TYPE; IMPACT MODIFIED NYLON MATERIAL; BLACK/WHITE COLOR; L8-30P CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2, NOM 057 APPROVAL; 480 VOLT AC VOLTAGE RATING; 30 AMP CURRENT RATING; GROUNDING; 2 POLE(S); IMPACT/CHEMICAL/ABRASION RESISTANT FROM THE MANUFACTURER Leviton's industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty. 30 Amp, 480 Volt, NEMA L8-30P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - Black-White
- Product Type - Electrical Plug
- Item Package Quantity - 1
- Item Package Weight - 0.31 Pounds
- Item Package Dimension: 4.76L x 2.40W x 2.40H inches
- EB PLUG LOCK 2PO 3WI L8-30P 30A480VAC
Specifications:
| Materials & Construction | |
| Color | Black, White |
| Material | Nylon |
| Outer Material | Nylon |
| Product Details | |
| Amperage | 30 |
| Color | Black, White |
| Connector Type | Plug |
| Grade | Industrial |
| Grounding Style | Self-Grounding |
| Material | Nylon |
| Maximum Cord Diameter (Decimal Inch) | 0.8600 |
| Minimum Cord Diameter (Decimal Inch) | 0.3850 |
| Nema Configuration | L8-30p |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Standards | Ansi C-73; Csa C22.2 No. 42 File Lr-406; Csa Certified; Nema Wd-6; Nom 057; Ul 498 File E13393; Ul Federal Specification W-C-596 File E13393; Ul Listed |
| Voltage | 480 |
| Sizing & Dimensions | |
| Weight | 3.52 ounces |
| Technical Specifications | |
| Warranty | Manufacture |
