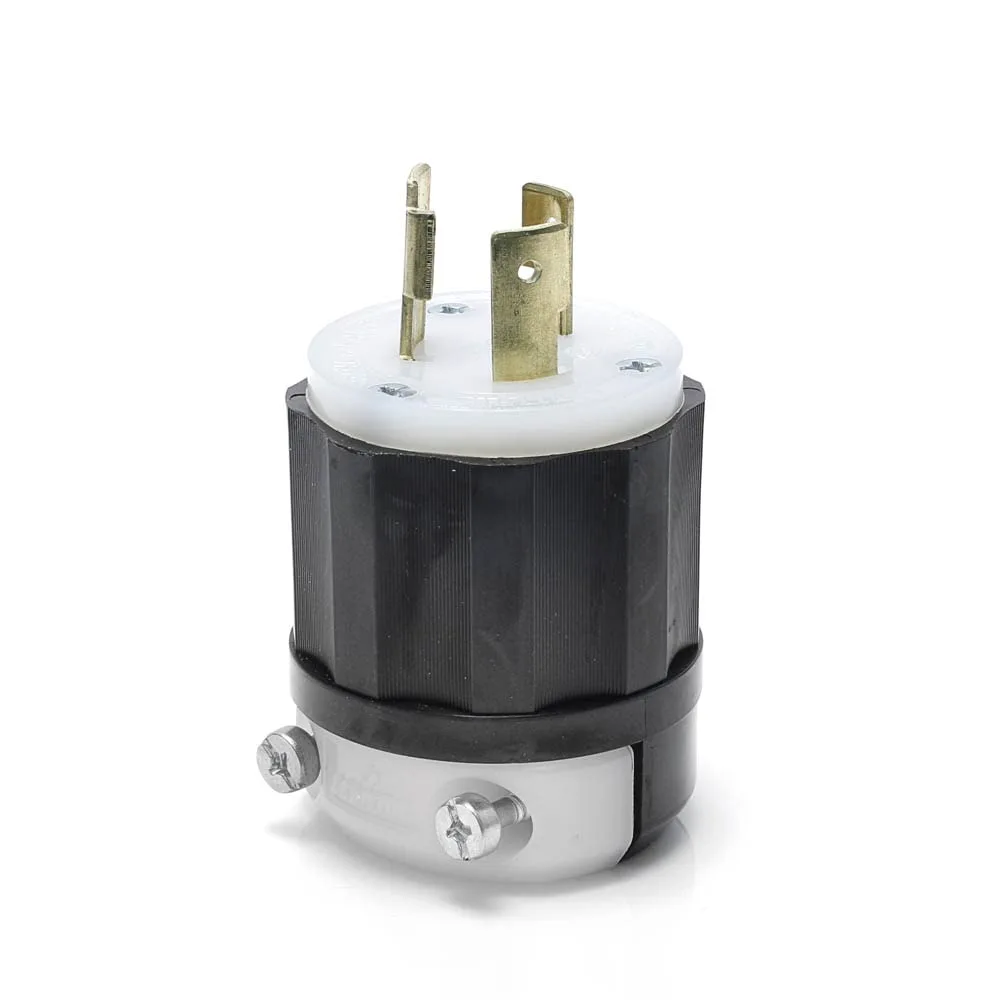

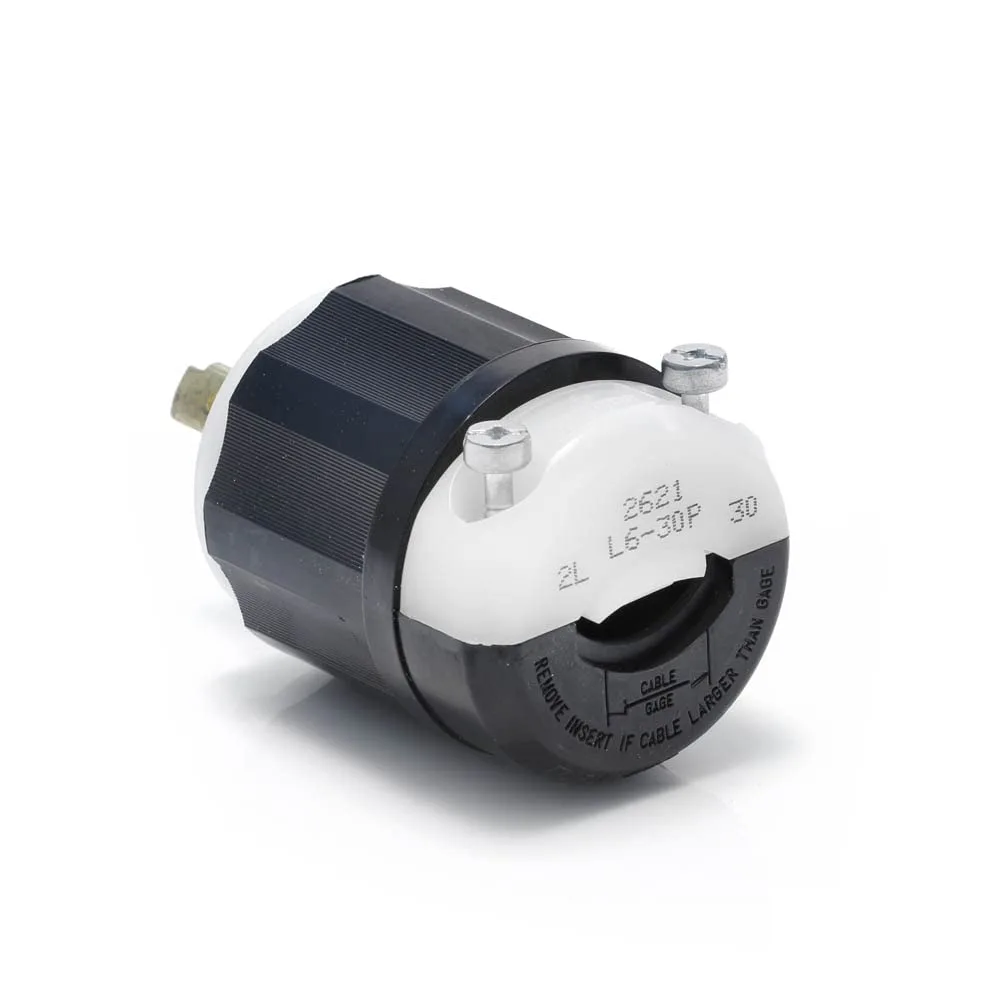

Leviton 30 Amp 250 Volt NEMA L6-30P 2P 3W Locking Plug Industrial Grade Grounding, White, 2621 One Size
Customize
Locking Inlet: Plug, Industrial, L6-30P, 250V, Black & White Self-Grounding, 30A, Nylon, 2 Poles, 3 Wire, Connector Type: Plug , Grade: Industrial , Material: Nylon , Grounding Style: Self-Grounding , Amperage: 30 , Voltage: 250 , Number Of Poles: 2 , Number Of Wires: 3 , Color: Black; White , Resistance Features: Chemical-Resistant; Impact-Resistant , Minimum Cord Diameter (Decimal Inch): 0.3850 , Maximum Cord Diameter (Decimal Inch): 0.8600 , Number Of Phases: 1 , Standards: ANSI C-73; CSA C22.2 No. 42 File LR-406; CSA Certified; NEMA WD-6; NOM 057; UL 498 File E13393; UL Federal Specification W-C-596 File E13393; UL Listed , Nema Configuration: L6-30P. PRODUCT DESCRIPTION: Leviton 2621 30 Amp, 250 Volt, NEMA L6-30P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - Black-White. From the manufacturer: Leviton's industry leading locking devices, such as the Black & White line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty. Deep slotted triple drive face module and cord clamp screws. Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire. Solid brass blades and contacts feature improved conductivity, low resistance, low heat, and long life. Super tough nylon body resists damage from severe impact, abrasion and chemicals.
- Deep slotted triple drive face module and cord clamp screws
- Internal Wiring Chambers Isolate Individual Conductors to Prevent Flashover, Arcing, and Stray Strands of Wire
- Solid Brass Blades And Contacts Feature Improved Conductivity, Low Resistance, Low Heat, and Long Life
- NEMA and Non-NEMA Configurations Available
- Super Tough Nylon Body Resists Damage From Severe Impact, Abrasion and Chemicals
Specifications:
| Materials & Construction | |
| Color | Black; White |
| Material | Nylon |
| Outer Material | Nylon |
| Product Details | |
| Amperage | 30 |
| Color | Black; White |
| Connector Type | Plug |
| Country of Origin | China |
| Grade | Industrial |
| Grounding Style | Self-Grounding |
| Item model number | 2621 |
| Material | Nylon |
| Maximum Cord Diameter (Decimal Inch) | 0.8600 |
| Minimum Cord Diameter (Decimal Inch) | 0.3850 |

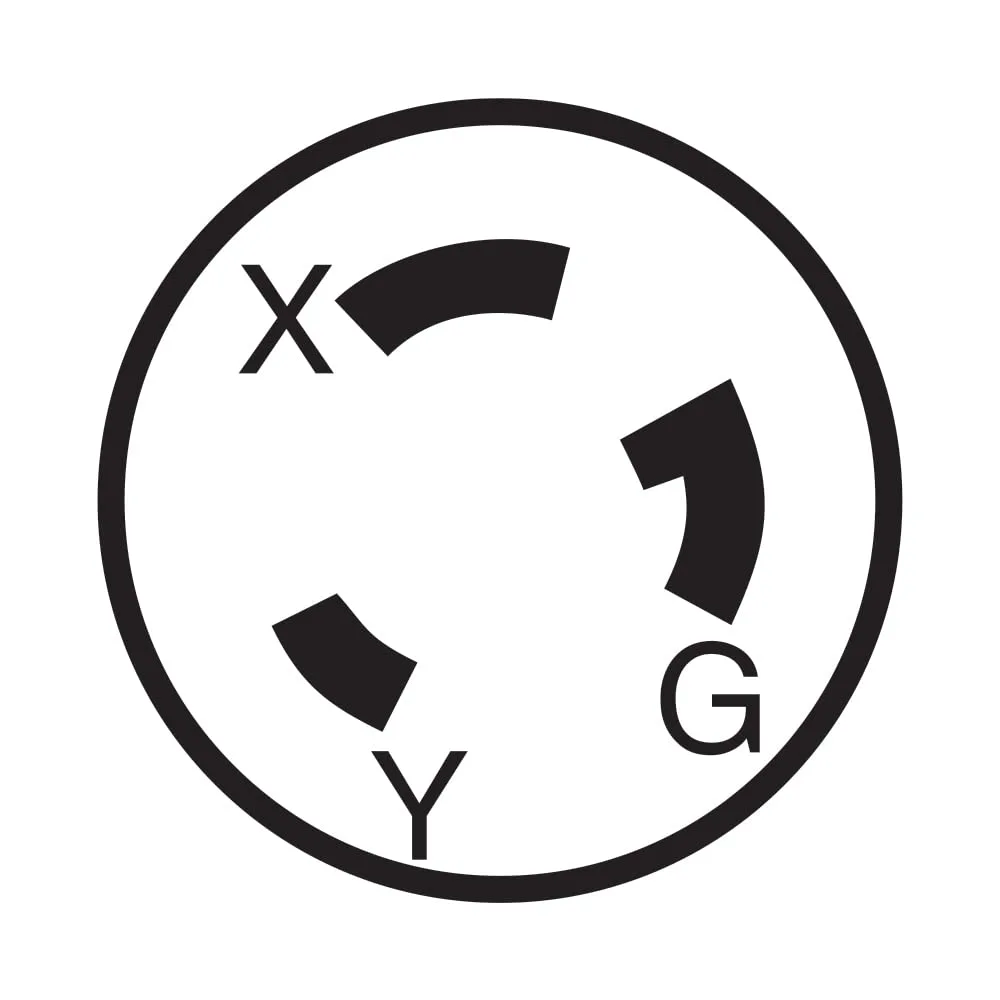

| Nema Configuration | L6-30p |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Resistance Features | Chemical-Resistant; Impact-Resistant |
| Standards | Ansi C-73; Csa C22.2 No. 42 File Lr-406; Csa Certified; Nema Wd-6; Nom 057; Ul 498 File E13393; Ul Federal Specification W-C-596 File E13393; Ul Listed |
| Voltage | 250 |
| Sizing & Dimensions | |
| Height | 2.8 inches |
| Length | 2.8 inches |
| Product Dimensions | 2.8 x 4.3 x 2.8 inches |
| Weight | 4.8 ounces |
| Width | 4.3 inches |
| Technical Specifications | |
| Voltage | 250 Volts |
| Warranty | Lifetime warranty (as stated by manufacturer) |
