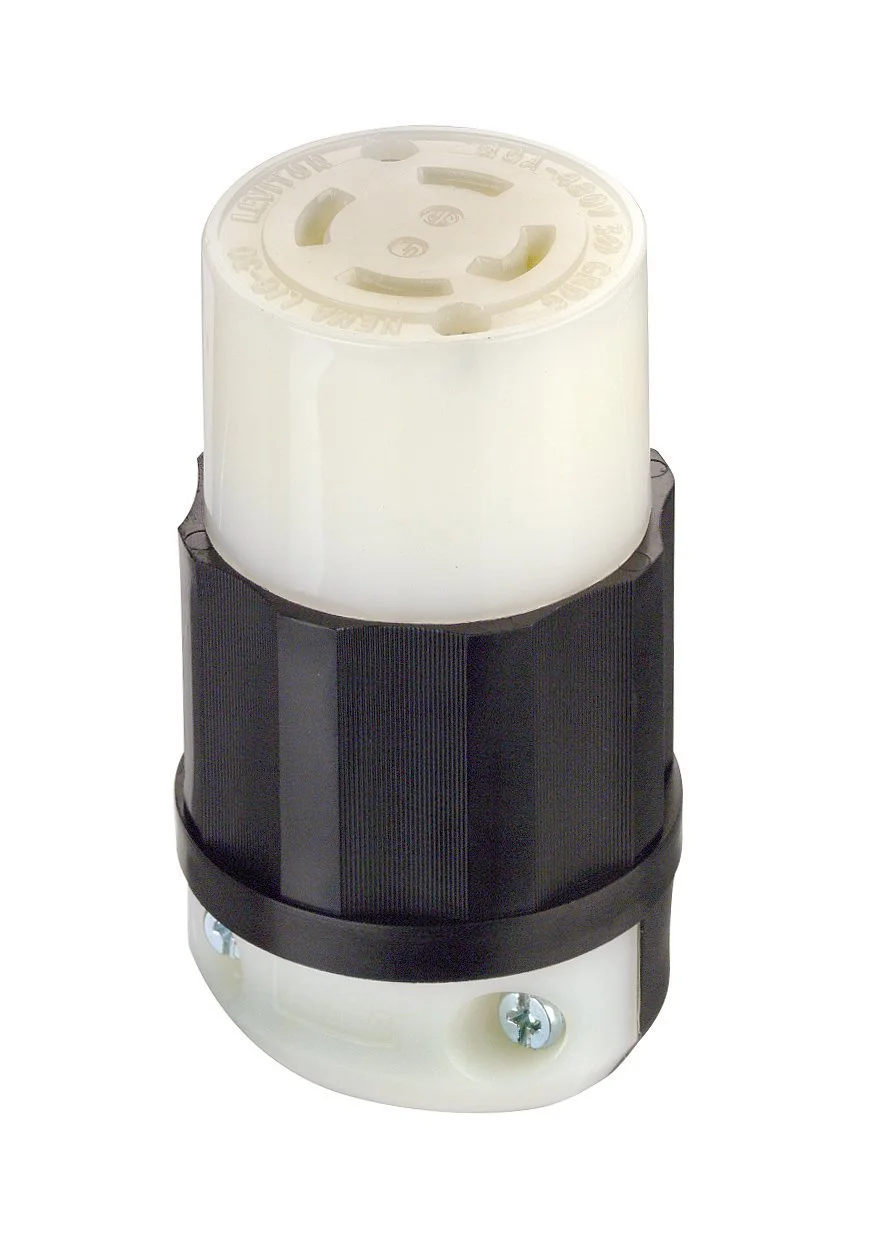

Leviton 30 Amp, 480 Volt 3-phase, NEMA L16-30R, 3P, 4W, Locking Connector, Industrial Grade, Grounding, 2733, Black-White
Customize
Locking Inlet: Connector, Industrial, L16-30R, 480V, Black & White Self-Grounding, 30A, Nylon, 3 Poles, 4 Wire. Connector Type: Connector, Grade: Industrial, Material: Nylon, Grounding Style: Self-Grounding, Amperage: 30, Voltage: 480, Number Of Poles: 3, Number Of Wires: 4, Color: Black; White, Minimum Cord Diameter (Decimal Inch): 0.5950, Maximum Cord Diameter (Decimal Inch): 1.1500, Number Of Phases: 3. Standards: ANSI C-73; CSA C22.2 No. 42 File LR-406; CSA Certified; NEMA WD-6; NOM 057; UL 498 File E13393; UL Federal Specification W-C-596 File E13393; UL Listed. NEMA Configuration: L16-30R. From the manufacturer: Leviton's industry-leading locking devices, such as the Black & White line of industrial-grade plugs, connectors and receptacles, offer superior performance and long-lasting reliability. Rugged impact-modified nylon construction resists impact, sunlight, chemicals, and rough use. Unique cord clamp accepts a wide range of cord sizes. One-piece contacts reduce friction and overheating. Industry exclusive limited lifetime warranty noted by manufacturer. Product is a 30-amp, 480-volt three-phase NEMA L16-30R locking connector (3P, 4W) in Black-White series, item/model number 2733.
- Made proudly in North America
- Industry exclusive limited lifetime warranty
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Unique cord clamp accepts wide range of cord sizes
- One piece contacts reduce friction and overheating
Specifications:
| Materials & Construction | |
| Color | Black, White |
| Material | Nylon |
| Outer Material | Nylon |
| Product Details | |
| Amperage | 30 |
| Connector Type | Connector |
| Grade | Industrial |
| Grounding Style | Self-Grounding |
| Material | Nylon |
| Maximum Cord Diameter (Decimal Inch) | 1.1500 |
| Minimum Cord Diameter (Decimal Inch) | 0.5950 |
| Nema Configuration | L16-30R |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Standards | Ansi C-73; Csa C22.2 No. 42 File Lr-406; Csa Certified; Nema Wd-6; Nom 057; Ul 498 File E13393; Ul Federal Specification W-C-596 File E13393; Ul Listed |
| Voltage | 480 |
| Sizing & Dimensions | |
| Height | 4.94 inches |
| Length | 11.81 inches |
| Product Dimensions | 11.81 x 4.63 x 4.94 inches |
| Size | 11.81 x 4.63 x 4.94 inches |
| Weight | 3.53 ounces |
| Width | 4.63 inches |
| Technical Specifications | |
| Is Discontinued By Manufacturer | Yes |
| Voltage Rating | 480 Volts (AC) |
