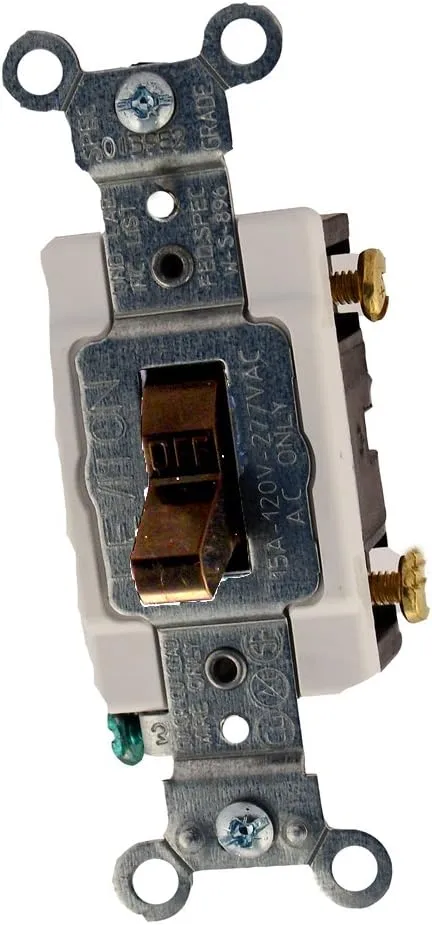

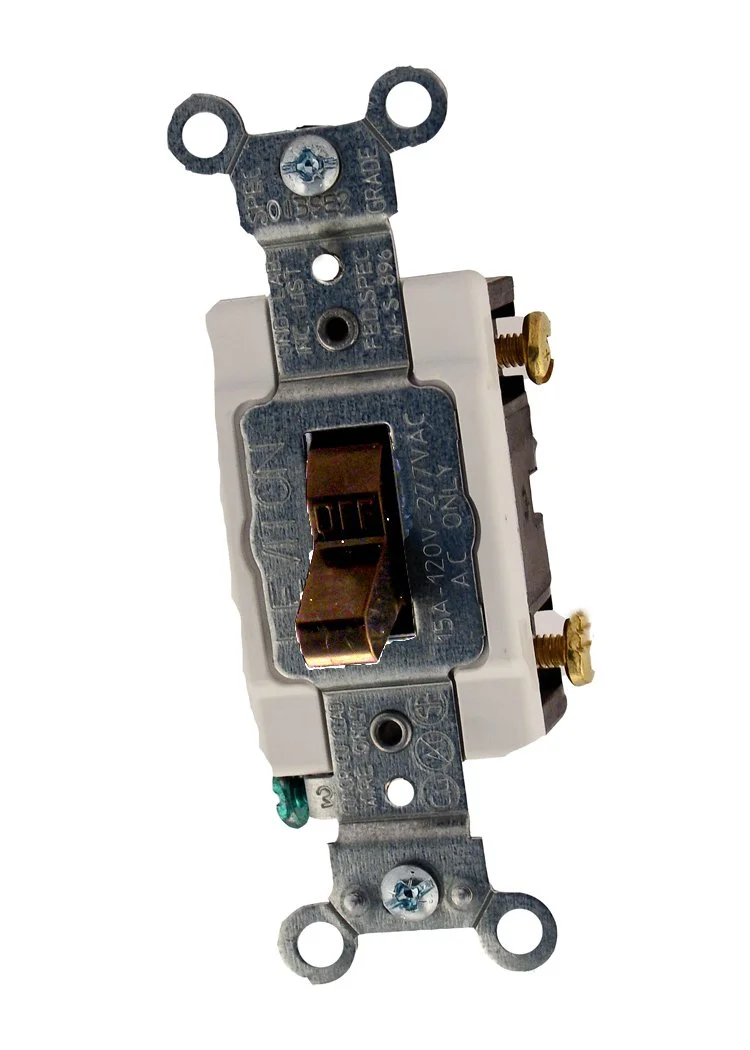

Leviton CS115-2 Commercial 1-Pole 15A 120/277V Toggle Wall Switch (Brown)
Customize
Leviton CS115-2 1 Pole, 120 to 277 VAC, 15 Amp commercial grade toggle wall switch in Brown. Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. 15 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Commercial Grade, Grounding, Brown. Switch Type: NonDimmer. Switch Operation: Toggle. Grade: Commercial. Standards Met: ANSI C-73; CSA C22.2 No. 111 File 152105; NEMA WD-1; NEMA WD-6; NOM 057; UL 20; UL 94 V-2; UL Federal Specification W-S-896E File E7458.
- Leviton CS115-2 15 Amp, 120/277 Volt, Toggle Single-Pole Ac Quiet Switch, Commercial Grade, Grounding, Brown
Specifications:
| Materials & Construction | |
| Color | Brown |
| Material | Alloy Steel, Brass |
| Outer Material | Alloy Steel, Brass |
| Product Details | |
| AC Adapter Current | 15 Amps |
| Color | Brown |
| Connector Type | Quick Connect |
| Contact Material | Brass |
| Country of Origin | China |
| Current Rating | 15 Amps |
| Dielectric Strength | [HIGH] |
| Grade | Commercial |
| Included Components | CS115-2 |
| Item Package Quantity | 1 |
| Material | Alloy Steel, Brass |
| Mounting Type | Wall Mount |
| National Stock Number | 5930-01-623-0067 |
| Operation Mode | ON-OFF |
| Package Dimensions | 6.3 x 2.8 x 1.5 inches |
| Size | Small |
| Standards Met | Ansi C-73; Csa C22.2 No. 111 File 152105; Nema Wd-1; Nema Wd-6; Nom 057; Ul 20; Ul 94 V-2; Ul Federal Specification W-S-896e File E7458 |
| Switch Operation | Toggle |
| Switch Style | Toggle |
| Switch Type | Single Pole |
| Terminal | Screw |
| Thickness | 1 Inches |
| Warranty Description | 10 Year Limited |
| Sizing & Dimensions | |
| Height | 2.5000 inches |
| Length | 8.0000 inches |
| Product Weight | 0.1000 |
| Size | Small |
| Weight | 1.6 ounces |
| Width | 4.0000 inches |
| Technical Specifications | |
| Connector Type | Quick Connect |
| Contact Material | Brass |
| Current Rating | 15 Amps |
| Dielectric Strength | [HIGH] |
| Operation Mode | ON-OFF |
| Terminal | Screw |
| Warranty | 10 Year Limited |
