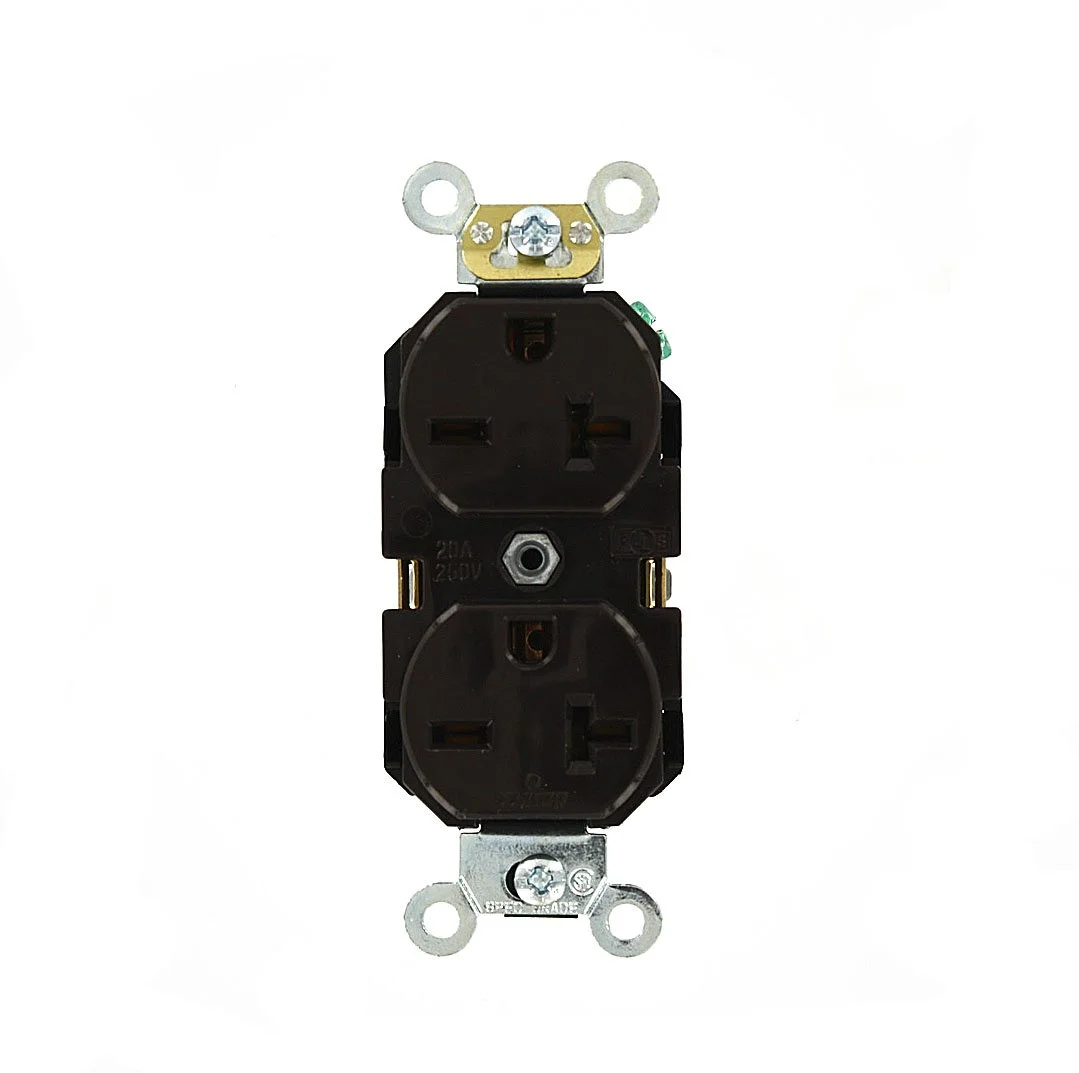

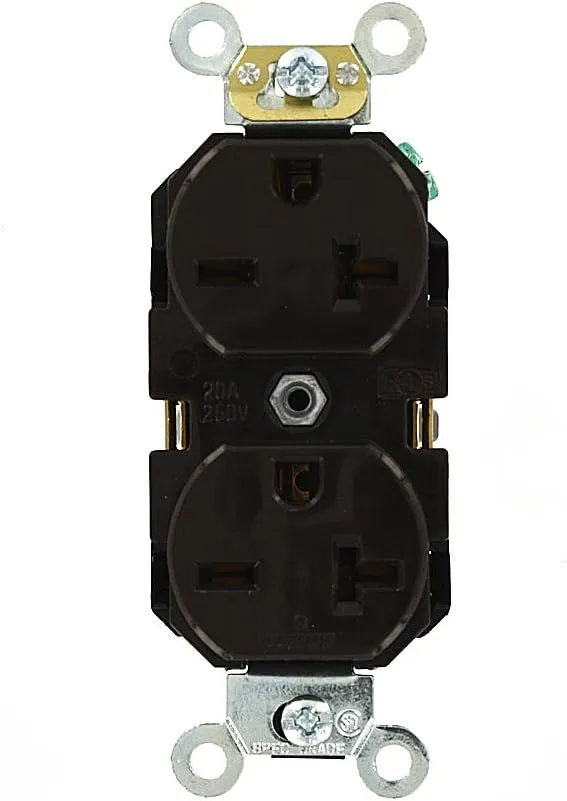

Leviton 20 Amp, 250 Volt, Industrial Heavy Duty Grade, Duplex Receptacle, Straight Blade, Self Grounding, 5462, Brown
Customize
Leviton's line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings. 20 Amp, 250 Volt, Industrial Heavy Duty Grade, Duplex Receptacle, Straight Blade, Self Grounding, Brown. Straight Blade Duplex Receptacle: NEMA 6-20R, 20 Amps, Self-Grounding Industrial, Brown, Receptacle Type: Duplex , Grade: Industrial , Color: Brown , Grounding Style: Self-Grounding , Amperage: 20 , Voltage: 250Vac , Wiring Method: Back & Side , Flanged: No , Number Of Phases: 1 , Number Of Wires: 3 , Number Of Poles: 2 , Mount Type: Flush Mount , Body Material: Nylon , Resistance Features: Impact-Resistant; Tamper-Resistant , Standards: ANSI C-73; CSA C22.2 No. 42 File 152105; CSA Certified; NEMA WD-6; NOM 057; UL 498 File E13399; UL Federal Specification W-C-596 File E13399; UL Listed , Nema Configuration: 6-20R
- Item Package Quantity - 1
- Item Package Weight - 0.25 Pounds
- Item Package Dimension: 4.5L x 1.9W x 1.2H inches
- Product Type: STRAIGHT BLADE RECEPTACLE
- BR REC DUP 2PO 3WI 20A250V
Specifications:
| Materials & Construction | |
| Color | Brown |
| Material | Nylon |
| Outer Material | Nylon |
| Product Details | |
| Amperage | 20 |
| Body Material | Nylon |
| Color | Brown |
| Flanged | No |
| Grade | Industrial |
| Grounding Style | Self-Grounding |
| Mount Type | Flush Mount |
| Nema Configuration | 6-20r |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Receptacle Type | Duplex |
| Resistance Features | Impact-Resistant; Tamper-Resistant |
| Standards | Ansi C-73; Csa C22.2 No. 42 File 152105; Csa Certified; Nema Wd-6; Nom 057; Ul 498 File E13399; Ul Federal Specification W-C-596 File E13399; Ul Listed |
| Voltage | 250vac |
| Wiring Method | Back & Side |
| Sizing & Dimensions | |
| Height | 4.25 inches |
| Length | 7.5 inches |
| Product Dimensions | 4.5"L x 1.9"W |
| Product Weight | 0.2600 |
| Weight | 4.16 ounces |
| Width | 3.75 inches |
| Technical Specifications | |
| Amperage | 20 |
| Certification | CSA, UL |
| Included Components | 5462 |
| Total Power Outlets | 2 |
| Voltage | 250vac |
| Warranty | Manufacture |
