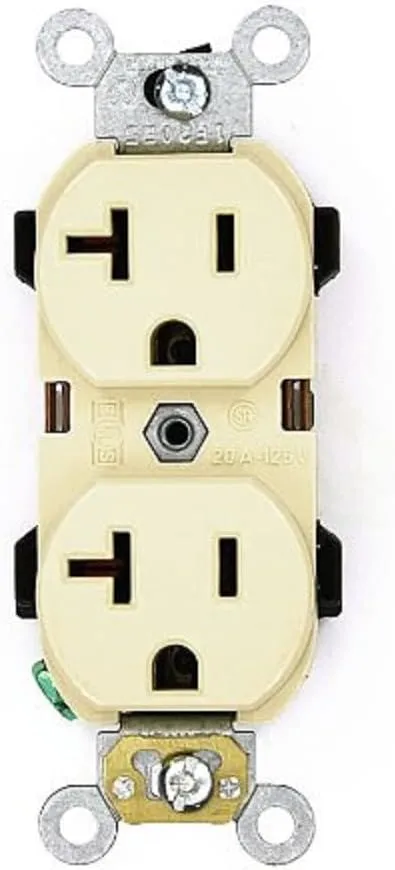

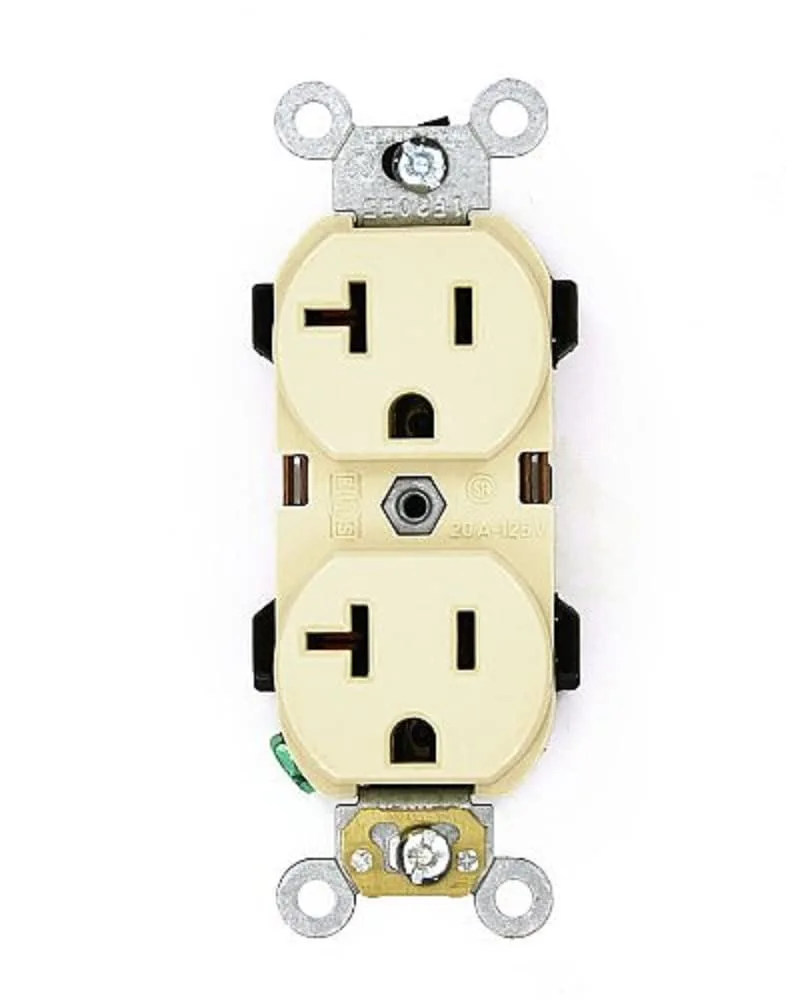

Leviton 5352-I 20-Amp, 125 Volt, Industrial Heavy Duty Grade, Duplex Receptacle, Straight Blade, Self Grounding, Ivory
Customize
Straight Blade Duplex Receptacle: NEMA 5-20R, 20 Amps, Self-Grounding Industrial, Ivory. Receptacle Type: Duplex. Grade: Industrial. Color: Ivory. Grounding Style: Self-Grounding. Amperage: 20. Voltage: 125Vac. Wiring Method: Back & Side. Flanged: No. Number Of Phases: 1. Number Of Wires: 3. Number Of Poles: 2. Mount Type: Flush Mount. Body Material: Nylon. Resistance Features: Impact-Resistant; Tamper-Resistant. Standards: ANSI C-73; CSA C22.2 No. 42 File 152105; CSA Certified; NEMA WD-6; NOM 057; UL 498 File E13399; UL Federal Specification W-C-596 File E13399; UL Listed. NEMA Configuration: 5-20R. From the manufacturer: Leviton's line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
- Product Type: STRAIGHT BLADE RECEPTACLE
- IV REC DUP TSLOT 2PO 3WI 20A125V
Specifications:
| Materials & Construction | |
| Body Material | Nylon |
| Color | Ivory |
| Material | Nylon |
| Product Details | |
| Amperage | 20 |
| Flanged | No |
| Grade | Industrial |
| Grounding Style | Self-Grounding |
| Mount Type | Flush Mount |
| Nema Configuration | 5-20r |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Receptacle Type | Duplex |
| Resistance Features | Impact-Resistant; Tamper-Resistant |
| Standards | Ansi C-73; Csa C22.2 No. 42 File 152105; Csa Certified; Nema Wd-6; Nom 057; Ul 498 File E13399; Ul Federal Specification W-C-596 File E13399; Ul Listed |
| Wiring Method | Back & Side |
| Sizing & Dimensions | |
| Height | 5.91 inches |
| Length | 5.91 inches |
| Product Dimensions | 5.91 x 5.91 x 5.91 inches |
| Weight | 3.2 ounces |
| Width | 5.91 inches |
| Technical Specifications | |
| Compatible Devices | All |
| Included Components | 5352-I |
| Thickness | 1 Inches |
| Total Power Outlets | 2 |
| Voltage | 125 Volts |
| Warranty Description | Manufacture |
